SPECIFICATION

Model: A24
Circuit Type: 4 Gang
Housing Material: Aluminum
Input Voltage: 12-24V DC
Total Power: 480W~960W
Maximum Current: 40A
Switch Operation Way: On-Off
With/without Light Sensor: Yes
Operating Temperature: - 40° C ~ + 105° C
Backlight Color: RGB
Backlight Adjustment: Automatic+Manual Off Control
Circuit Control Box: One Sided Output

KEY FEATURES

3 Lighting Modes & RGB Modes No APP Required

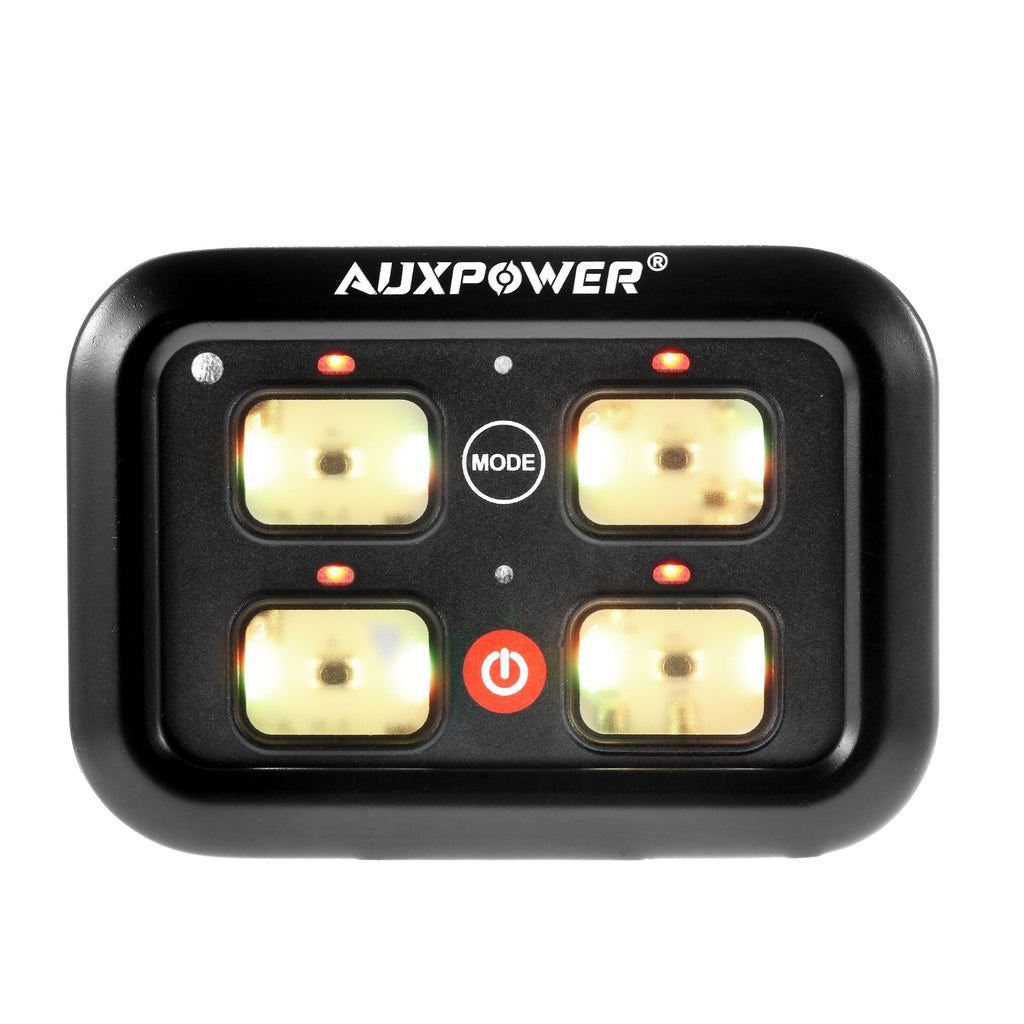

This upgraded RGB switch panel has 3 modes. Red - Toggle, constant light mode; Blue - Momentary, press and hold to turn on the light, release to turn off the light; Green - Pulse, flash light mode. This auxiliary switch panel also offers unlimited RGB backlight color options to match the atmosphere of your vehicle.
Backlight Off & Automatic Dimmable
The offroad switch panel features a mode button that allows you to easily turn the backlight on or off.If the backlight seems too harsh in dark environments, simply turn it off for a more comfortable visual experience.You can also rely on the light sensor built into the panel for automatic adjustment
Easy to Install
No need for complex wiring and time-consuming installation. Just one AUXPOWER switch kit can simplify the wiring process, making installation and control simple. The car switch panel comes with an adjustable bracket, which can be securely installed in any position in the car without slipping. Choose and customize your personal switch panel from two installation options.
Wide Application
This multifunction switch panel is suitable for a wide range of vehicles and applications. Whether you own a truck, boat, marine,ATV, UTV, SUV, or RV, AUXPOWER switch panel is the perfect solution for organizing and controlling your accessories.
Upgraded Equipment

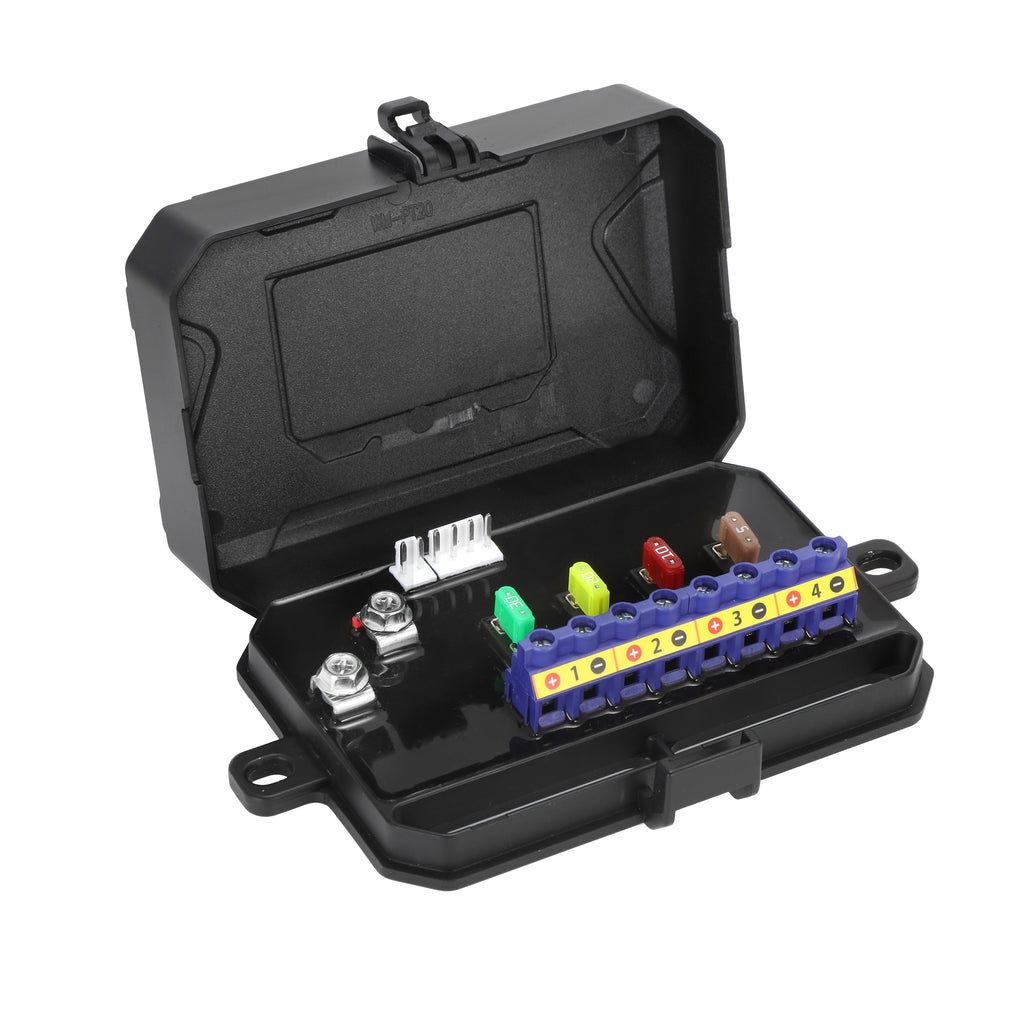

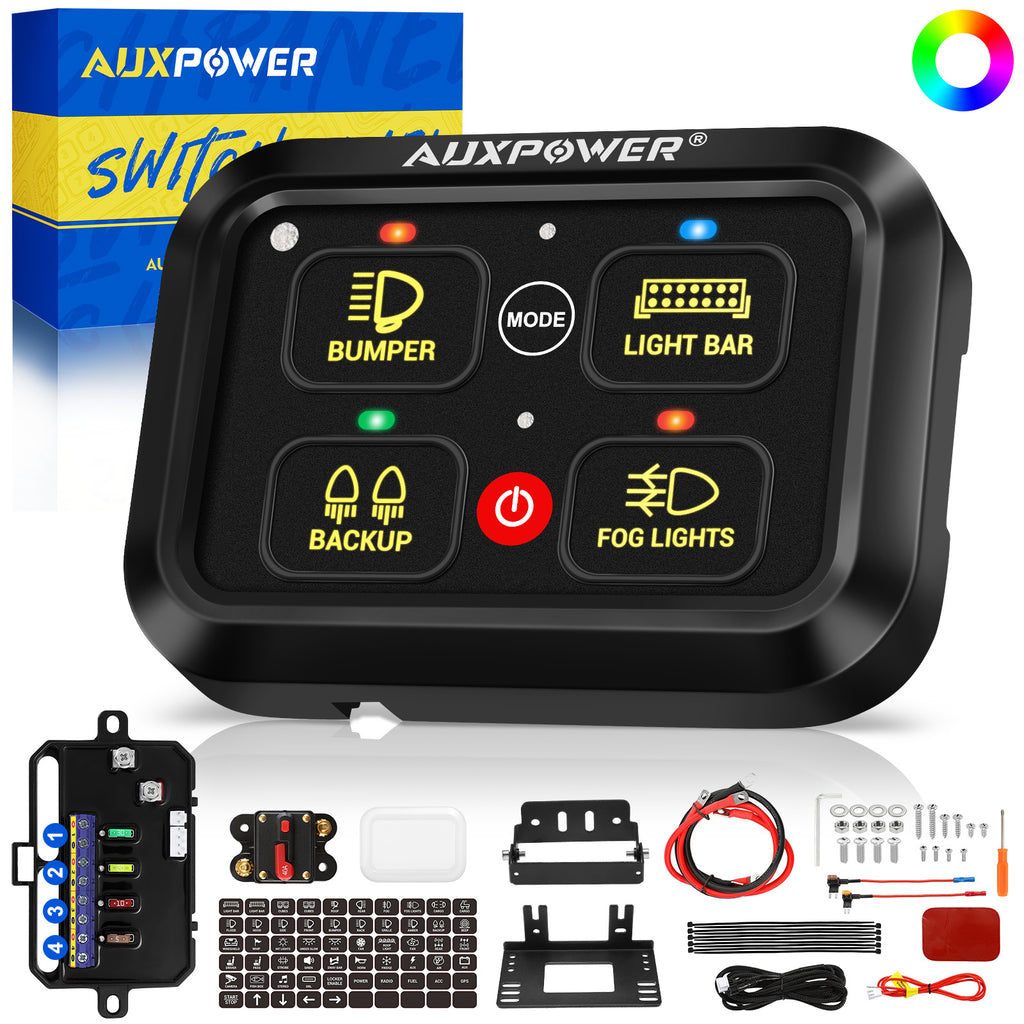

The 4 gang switch pod includes a circuit box with a built-in solid-state relay, a 40A circuit breaker,fuses,waterproof covers,60pcs stickers,Max power:480~960W.Temperature range:-40~221°F.IP65 waterproofpcs self-adhesive labels, customize your own switch panel. PS: This RGB 4 gang switch panel without app.If you have any problems, please do not hesitate to contact us.
